What Are the Differences Between Articulating Spider Lifts and Standard Wheeled Articulating Boom Lifts

What Are the Differences Between Articulating Spider Lifts and Standard Wheeled Articulating Boom Lifts

Time

2026-06-24

浏览量

Compare Articulating Spider Lifts vs standard wheeled articulating boom lifts. Goman Lift’s tracked articulating spider lifts feature narrow chassis, non-marking rubber tracks and full-electric silent operation for indoor malls, substations and cultural venues.

Chassis Structure & Site Passability

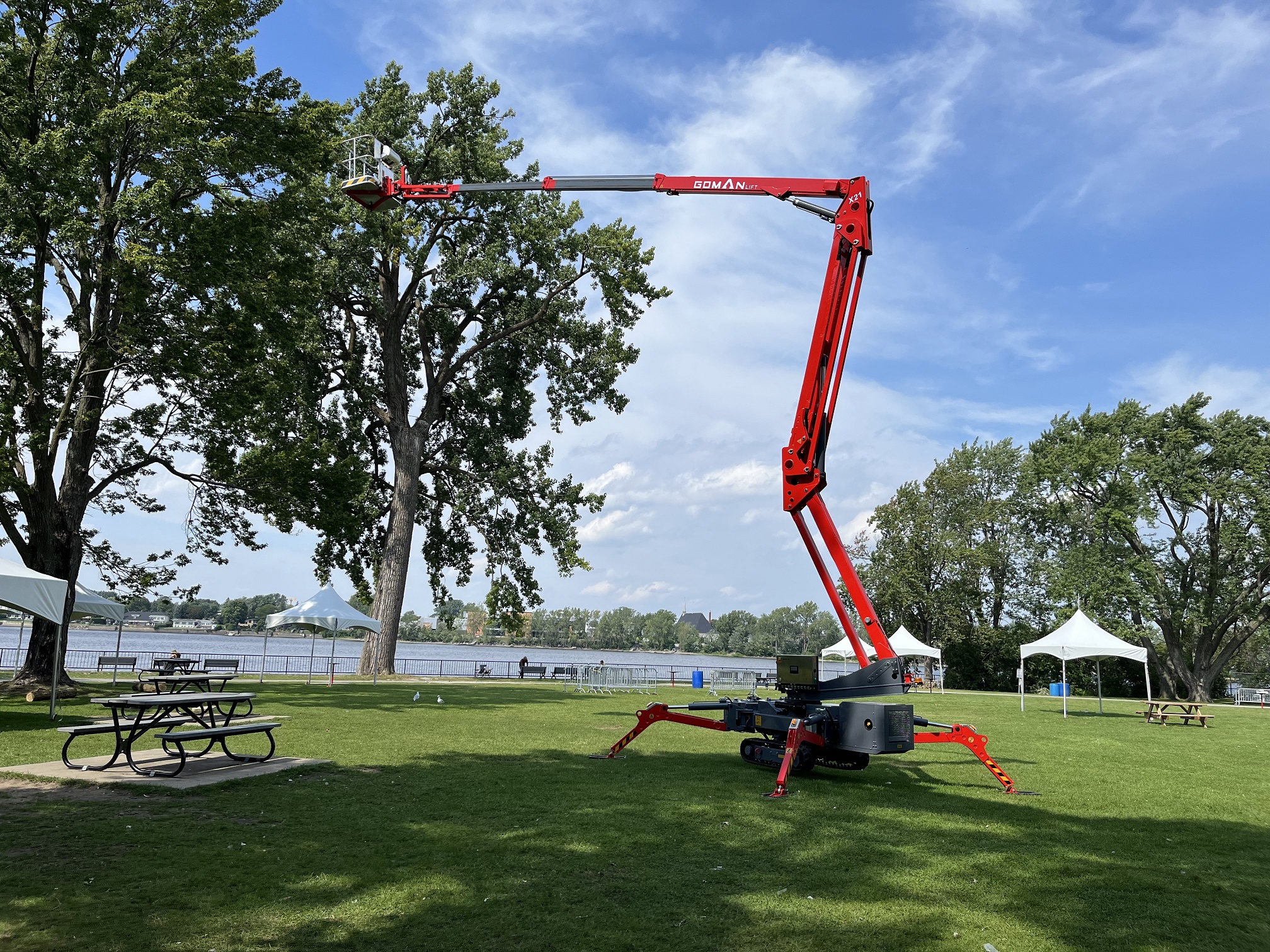

Articulating Spider Lift

Equipped with foldable bionic four independent outriggers and lightweight rubber tracked chassis.
The folded width is only 0.76–0.88m, narrower than standard single doorways. It can pass through narrow corridors, standard doors and cargo elevators to operate on different floors inside buildings.

Four outriggers support separate automatic leveling, stable deployment on slopes, steps and uneven ground without extra ground flattening work.

Standard Wheeled Articulating Boom Lift

It adopts a wide fixed wheeled chassis with large overall dimensions. The folded width exceeds 1.5 meters, unable to enter indoor doorways or cargo elevators.

Without independently adjustable outriggers, it can only work on flat, wide hardened ground and poses tipping risks on sloped or stepped terrain.

Ground Protection Performance

Articulating Spider Lift

Low ground-pressure polyurethane non-marking tracks evenly distribute the machine’s weight supported by four outriggers. It leaves zero scratches, black rubber marks or cracks on marble, epoxy, stone and wood floors, safe for municipal halls, shopping malls, museums and cultural squares.

Standard Wheeled Articulating Boom Lift

Heavy solid wheels generate high local ground pressure. Wheels easily leave permanent black marks and crack decorative floors, which are banned in all refined indoor public spaces.

Power, Noise & Emission Performance

Articulating Spider Lift

Most models are fully powered by lithium batteries with zero exhaust emissions. Operating noise is controlled below 55dB, delivering library-level quiet performance. Ideal for overnight zero-downtime maintenance in closed indoor venues without disturbing staff or visitors.

Standard Wheeled Articulating Boom Lift

The majority run on diesel engines with loud noise and exhaust pollution. A small number of electric wheeled boom lifts still have bulky bodies and cannot be deployed in fully enclosed quiet public areas.

Deployment, Retraction & Transfer Efficiency

Articulating Spider Lift

Lightweight overall body; full deployment and retraction can be finished within 90 seconds. It can move short distances independently inside buildings, and long-distance transportation only requires small flat trucks with low transfer costs.

Standard Wheeled Articulating Boom Lift

Heavy weight and oversized body. Complicated outrigger locking steps take much longer to set up and pack up. Large flat trailers are mandatory for cross-site transport, leading to high transfer expenses.

High-Altitude Operation Precision

Articulating Spider Lift

Fitted with millimeter-level micro-motion hydraulic control and 360° continuous turntable rotation. Delicate fine adjustment prevents collisions with lamps, glass curtain walls, power cables and precise steel structures during refined indoor maintenance.

Standard Wheeled Articulating Boom Lift

Large mechanical inertia makes tiny fine adjustments difficult, raising risks of scratching architectural and electrical facilities during close-range overhaul.

Applicable Working Scenarios

Ideal Scenarios for Articulating Spider Lifts

Indoor high-ceiling atriums, municipal service centers, red cultural scenic spots, high-speed railway stations, shopping malls, indoor substations, mountain live-line power repair, historic building renovation and post-disaster emergency power rescue.

Ideal Scenarios for Standard Wheeled Articulating Boom Lifts

Open-air construction sites, outdoor factory workshops, municipal road facade projects and large outdoor steel structure works with no strict ground or noise restrictions.

Get Custom Aerial Equipment Solutions from Goman Lift

If you need compact, silent and floor-friendly aerial machines for indoor mall maintenance, substation live-line overhaul or cultural venue upkeep, contact Goman Lift’s professional technical team to obtain complete product datasheets and real on-site project cases.
Visit our [Articulating Spider Lift Product Series] to view full specifications of 12m–48m tracked articulating spider lifts.
