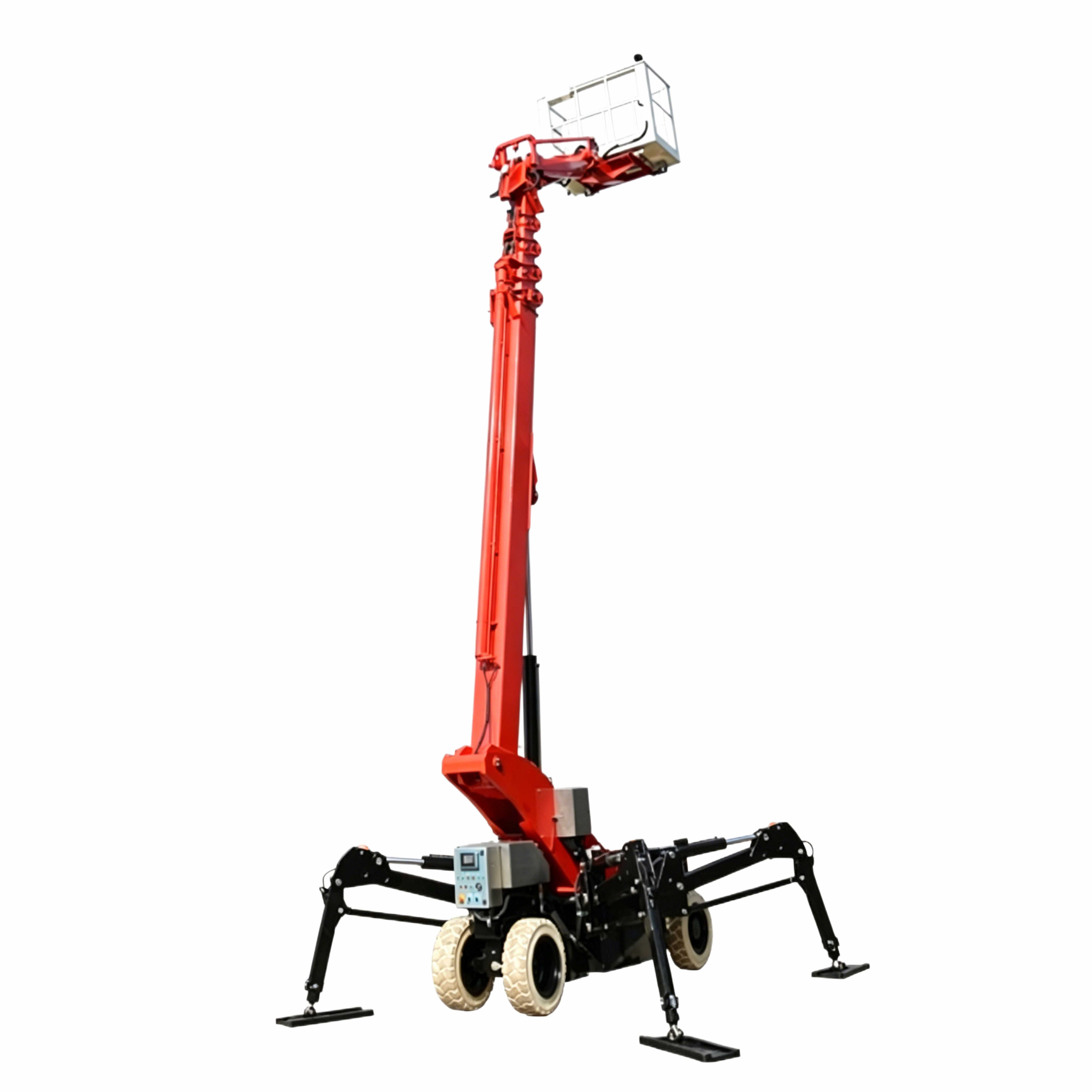

Wheeled Spider Lift - R36
Category
Keyword
Wheeled Spider Lift,Spider Lift
Max Working Height: 36.00m
Max Working Radius: 14.30m
Safe Working Load: 200kg
Overall Weight: 7380kg
- DESCRIPTION
- Standard
- Application Cases
-
Parameter/Model R36 Max. Working Height 36.00m Max. Platform Height 34.00m Load Capacity 200kg Max. Horizontal Reach @ 200kg Load 14.30m Platform Rotation 180° Jib Rotation Angle 120° Turret Rotation 360° non-continuous Work Platform Size 1.2×0.8×1.1 m Stowed Length 8.47m Stowed Width 0.92m Stowed Height 2.00m Travel Speed 0-2km/h Max. Working Gradeability 20% Max. Climbing Gradeability 30% Total Weight 7380kg -
Standard Power Motor + Diesel Engine -
Wheeled Spider Lift - R36
