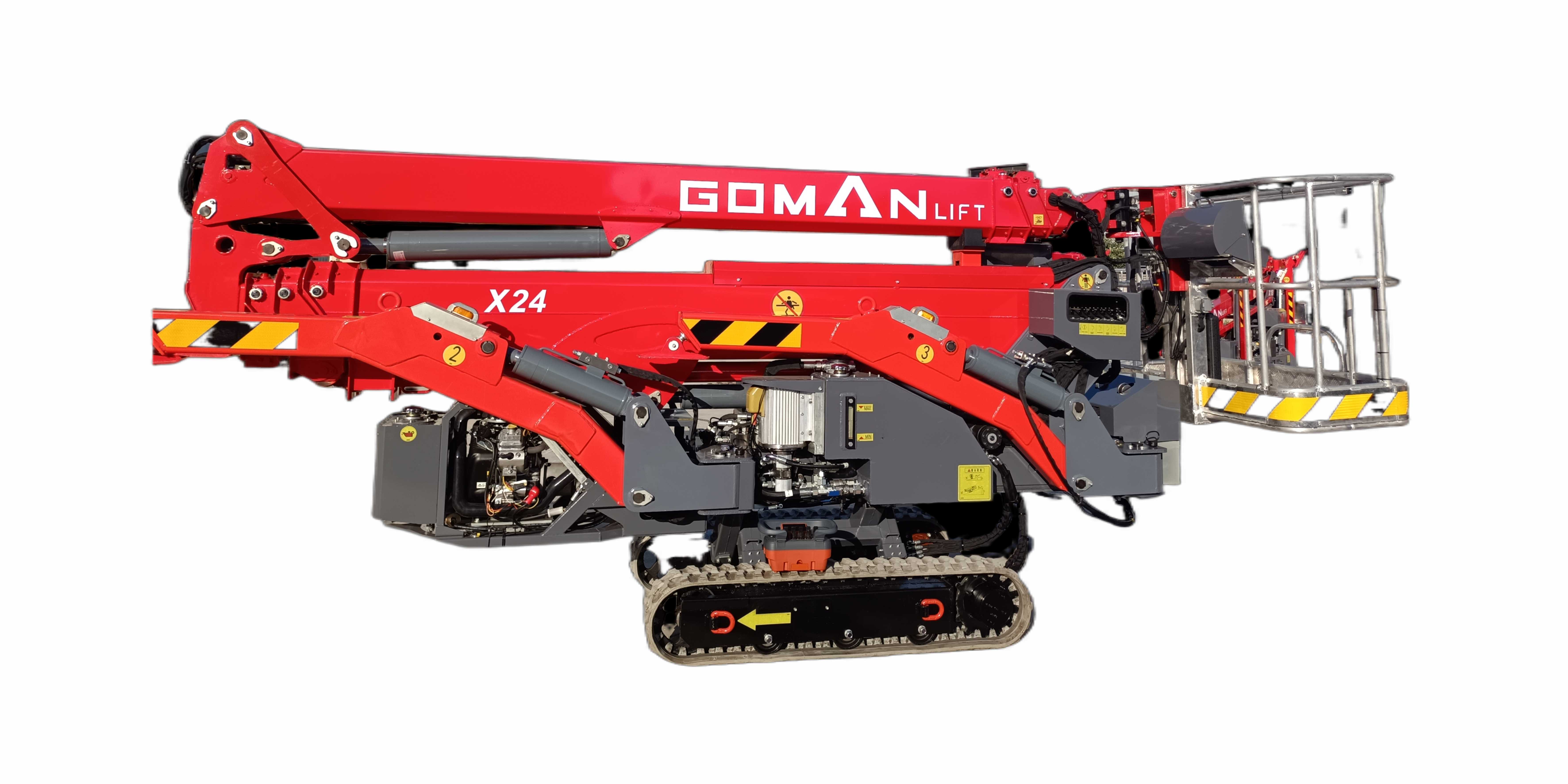

Articulated Spider Lift - X24
Category
Keyword
Max Working Height: 24.00m
Max Working Radius: 10.60m
Safe Working Load: 200kg
Overall Weight: 3450kg
- DESCRIPTION
- Standard
- Application Cases
-
Parameter/Model X24 Max. Working Height 24.00m Max. Platform Height 22.00m Load Capacity 230kg Max. Horizontal Reach 10.60m Basket Rotation 180° Turret Rotation 360° Continuous/Non-continuous Work Platform Dimensions 1.2/1.5×0.8×1.1m (Basket size customizable) Stowed Length 4.62/5.46m Stowed Width 0.83m Stowed Height 1.95m Travel Speed 0-2.5km/h(0-0.69m/s) Max. Working Grade 20% Max. Climbing Gradient 30% Total Weight 3450kg Power 14.9kw Electric Motor 220V/2.2kw -
Power Configuration Gasoline engine / Diesel engine + Battery / Lithium battery + 220V AC (3-power or 2-power) -
Articulated Spider Lift - X24
