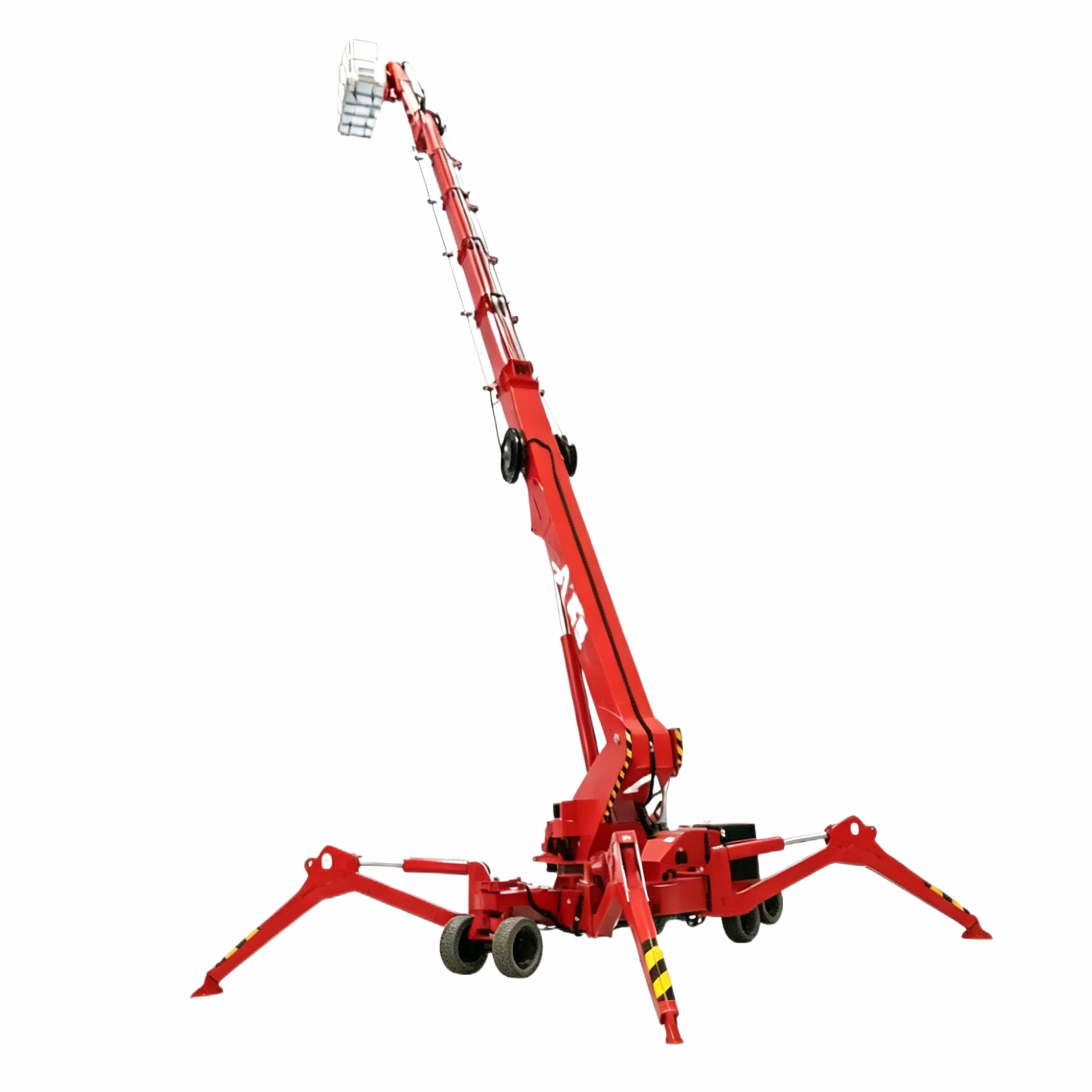

Wheeled Spider Lift - R43
Category
Keyword
Wheeled Spider Lift,Spider Lift
Max Working Height: 43.00m
Max Working Radius: 15.00m
Safe Working Load: 200kg
Overall Weight: 11200kg
- DESCRIPTION
- Standard
- Application Cases
-
Parameter/Model R43 Max. Working Height 43.00m Max. Platform Height 41.00m Load Capacity 200kg Max. Horizontal Reach @ 200kg Load 15.00m Platform Rotation 180° Jib Rotation Angle 120° Turret Rotation 360° non-continuous Work Platform Size 1.8×0.8×1.1 m Stowed Length 8.55m Stowed Width 1.50m Stowed Height 2.30m Travel Speed 0-2km/h Max. Working Gradeability 20% Max. Climbing Gradeability 30% Total Weight 11200kg -
Standard Power Motor + Diesel Engine -
Wheeled Spider Lift - R43
